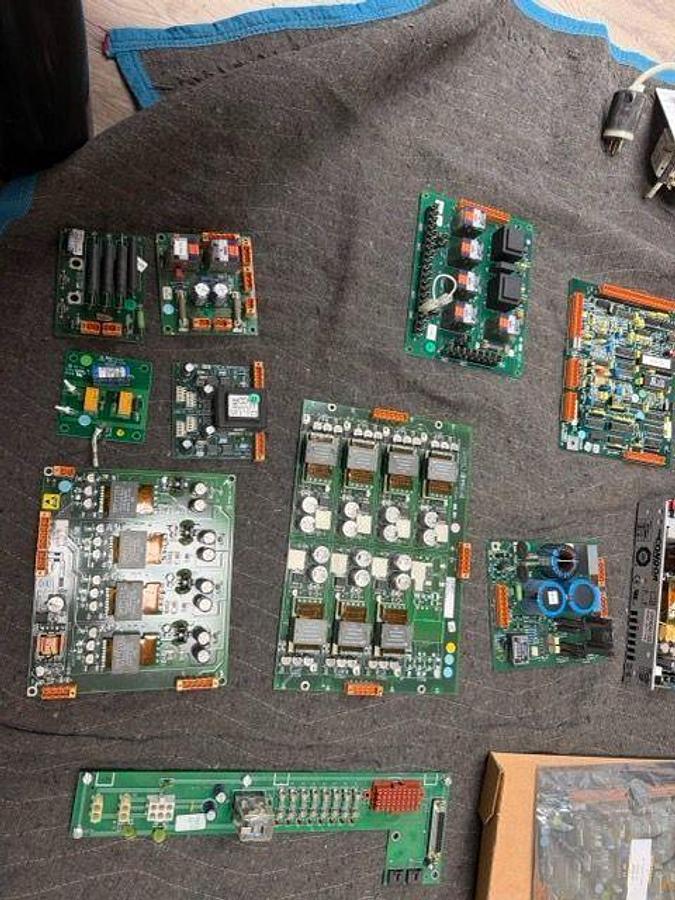

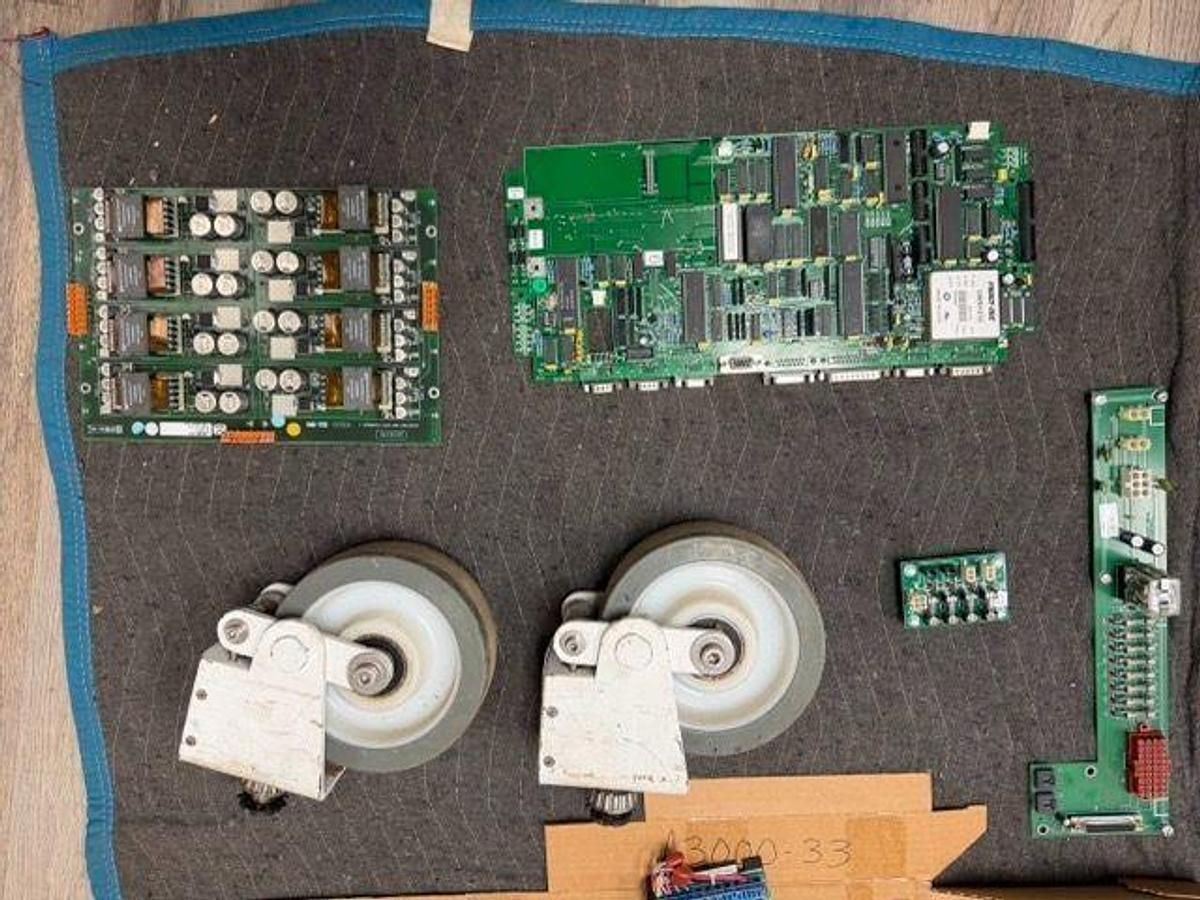

For Sale SEDECAL Parts for Sedecal SM-40 HF-Batt Mobile Battery X-Ray Generator Various Parts pulled from SEDECAL X-Ray Unit Portable X-Ray Parts P/N SM-40

Sedecal ATP Console CPU PCB | P/N A3024-424 Rev. D | S/N G35480 | Power-One OWS1212 on-board | QC Passed | Used
Sedecal Inverter Battery Charger-1 PCB | P/N A3533-02-C2 | 8-channel board | Payton Group transformers P/N 51872 Rev.01 | Sub-board P/N 90052-04 | Used
Sedecal Motors Battery Charger PCB | P/N A3532-04-E | Payton Group transformers P/N 51872 Rev.01 | QC 3000 Passed | 3-channel (A, B, C sections) | Used
Sedecal Fuse Distribution Board | P/N 500376-1 Rev. A | CTL 1243 | S/N 0529 | KRODT 2005 | 4-fuse, 4-LED indicator board | Used
Sedecal Fuse Relay Distribution Board | P/N 400810 Rev. E | SMC 0402 | S/N 1024 | 8-fuse, 8-LED indicator, relay module, D-sub connector | Used
Sedecal Auto On/Off Movil PCB | P/N A3179-05-A | Sub-board P/N 90077-01 | C1539BIM capacitor | Dual relay board | CARA COMP | Used
Sedecal IPM Driver PCB | P/N A-3063-03-B | Sub-board P/N 3083-03 Rev. A | TAM2070 transformer 6VA 17V | QC Passed | High Voltage board | Used
Sedecal Charge/Discharge Monitor PCB | P/N A-3212-01-E | Sub-board P/N 3212-01 Rev. A | 4x ATE 10K resistors | QC Passed | MT 1024203 | Used
Sedecal Brake Board PCB | P/N A3567-04-E | Sub-board P/N 90109-02 | Schrack PT271024 relay 24VDC | 10A fuse | S/N G35480 | MT 1021125 | CARA COMP | Used
Sedecal Inverter Battery Charger-2 PCB | P/N A3534-02-C2 | Sub-board P/N 90053-04 | 8-channel (IBC2-1 through IBC2-8) | Payton Group transformers P/N 51872 Rev.01 | Nichicon 10µF 450V caps | RoHS | Used
Sedecal LF-RAC PCB | P/N A-3096-02-B | Sub-board P/N 3085-02 Rev. B | S/N A125522 | 5x Schrack PT271024 relays 24VDC | 6.25A fuse | MT 1015919 | Used
Sedecal Filament Driver HC PCB | P/N A3004-10-B | Sub-board P/N 90069-03 | Cincon EC4A13 DC/DC converter 18-36VDC in / 15VDC out | Dual large capacitors 630V | S/N G35480 | QC Passed | Used
Sedecal HT Controller PCB | P/N A3000-33-M | S/N SE 10040012 | Firmware P10540 V5R8.09/06/10 | AD7582KN ADC | RoHS | SEDECAL ALGETE 1414 stamp | Used
Electrol K-TROL C-MH-23-787B-CM DC Motor Speed Controller | 230V 1HP | K-Line chassis mount | Torque/IR Comp/Min/Max/Acc-Dec adjustments | UL/CE certified | Used
Mallinckrodt Inc. Console Control PCB | P/N 404821-1/404821-3 Rev. B/C | S/N 0099 | Motorola MC68332 CPU | Epson S1D13506 LCD controller | AMD AM29F160DT flash | PTI 12V power module | Used
Mallinckrodt Inc. Motor Driver / Output Control PCB | P/N 404257 Rev. A | S/N 0160 | SMC 0413 | IRL724N MOSFETs | LM324N op-amps | ST TPSA4260PNI0 ICs | Large connector array J250/J251/J252 | Used
Sedecal HT Controller PCB | P/N A3000-33 | Ref. 41962-11 | Eurostat label | In original anti-static bag | Used
Liebel-Flarsheim Harness Distribution Board | P/N 400804 Rev. M | S/N 1095 | SMC 0347 | PCB ref. 160E0164 Rev. G | Made in USA | D-sub multi-connector I/O board | Used
Liebel-Flarsheim Co. Relay Output PCB | P/N 404806 Rev. G | S/N 0357 | SMC 0415 | Assembly 404806 / Drill 404808 / Artwork 404809 Rev. C | 14x NAIS DS2Y-S-DC24V AGY2324 relays | Copyright 1998 | Used
Sedecal Digital Motion Control (DMC) PCB | P/N A3539-01 Rev. H | Firmware DMC V11R3b5 | Dual large capacitors | Power transistors with heatsinks | Orange terminal connectors | Used
Sedecal SM-40 Mobile X-Ray Drive Handle Assembly | Left Right pair | Blue housing with yellow squeeze-grip trigger sensors | C1A7 39Y1 casting | Rev 1-B Oct 2009 | Internal wiring harness with connector | Used
Sedecal SM-40 AC Power Inlet Panel Assembly | ABB S200 D10 2-pole 10A circuit breaker | IEC inlet connector | Terminal block wiring | With Ametek/Hunter Spring cable reel Model D201105-1 10A 125V (Aug 2013) | Used

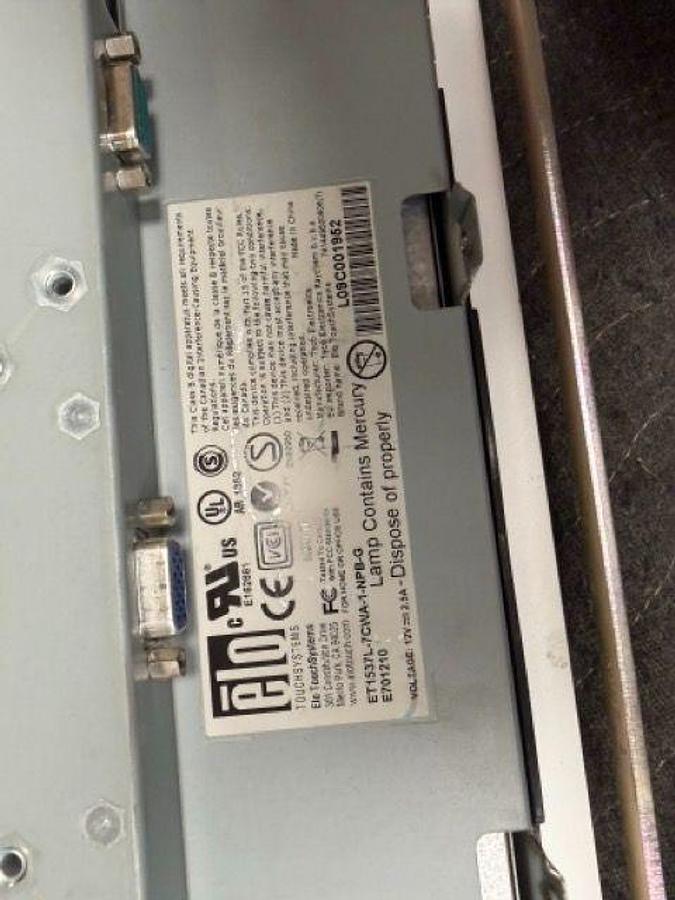

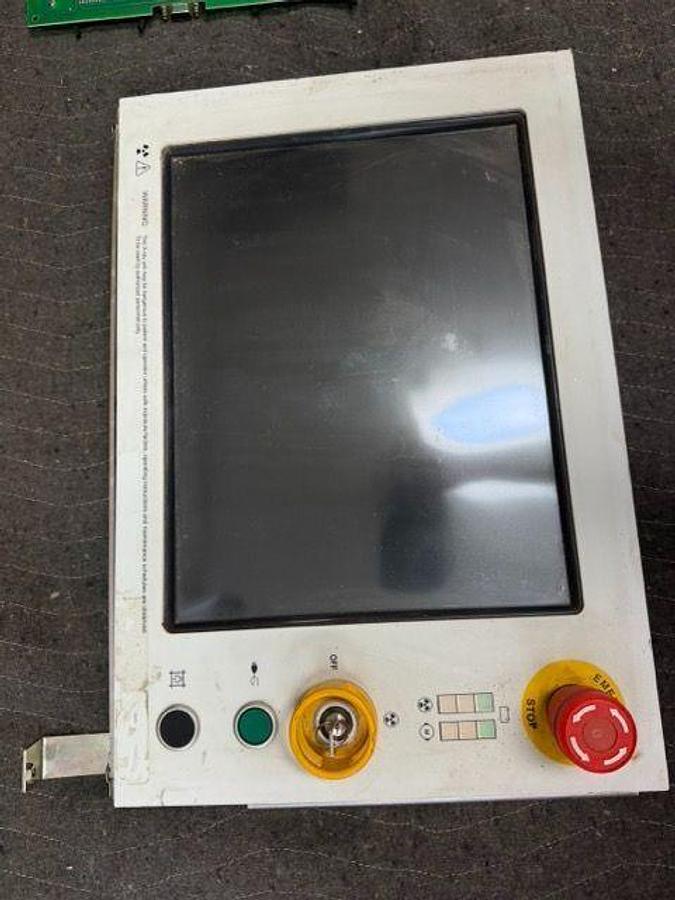

Sedecal SM-40 Operator Control Console Assembly | Elo TouchSystems ET1537L-7CWA-1-NPB-G 15” touchscreen (12V 2.5A) | S/N L09C001952 | Internal Sedecal control PCB P/N 48-09NS-010 firmware V4R1b8 15Ah_CSB | Key switch, green power button, EMG STOP button | Cara AB sub-board 3130-01 | Used

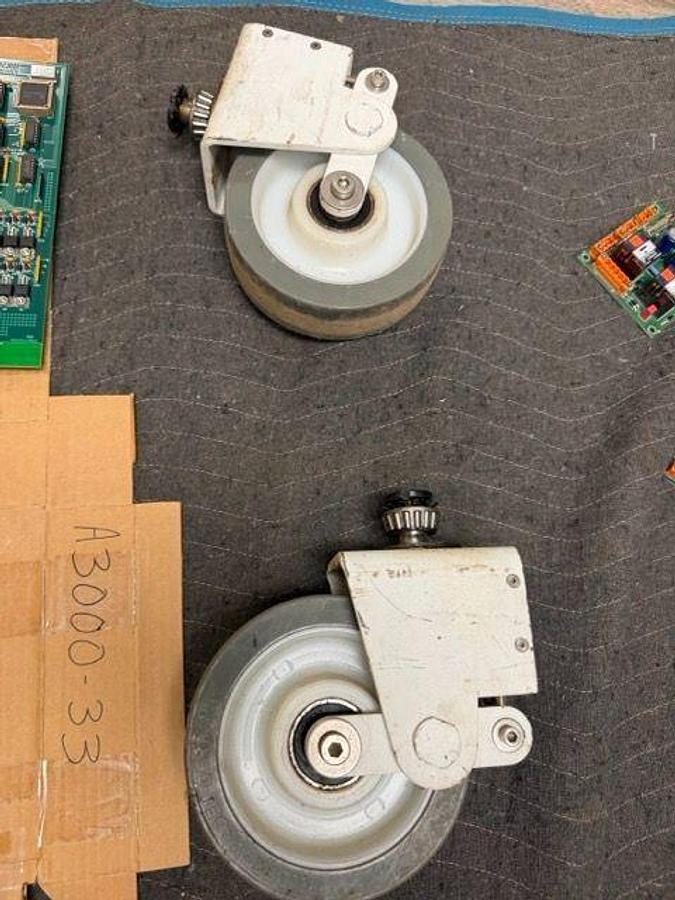

Sedecal SM-40 Mobile X-Ray Rear Caster Wheel Assembly | Pair (2) | Räder-Vogel Germany gray rubber tire / white nylon hub | Toothed encoder gear on axle | Metal bracket mount | Used
